Golygon

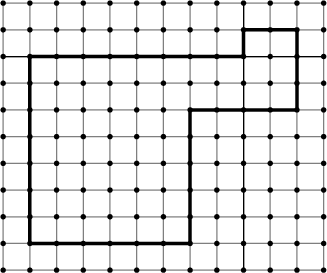

\begin{figure}\begin{center}\BoxedEPSF{Golygon.epsf scaled 700}\end{center}\end{figure}

A Plane path on a set of equally spaced Lattice Points, starting at the Origin, where the first step is one unit to the north or south, the second step is two units to the east or west, the third is three units to the north or south, etc., and continuing until the Origin is again reached. No crossing or backtracking is allowed. The simplest golygon is (0, 0), (0, 1), (2, 1), (2, $-2$), ($-2$, $-2$), ($-2$, $-7$), ($-8$, $-7$), ($-8$, 0), (0, 0).


A golygon can be formed if there exists an Even Integer $n$ such that

$\displaystyle \pm 1\pm 3\pm \ldots\pm (n-1)$ $\textstyle =$ $\displaystyle 0$ (1)
$\displaystyle \pm 2\pm 4\pm \ldots\pm n$ $\textstyle =$ $\displaystyle 0$ (2)

(Vardi 1991). Gardner proved that all golygons are of the form $n=8k$. The number of golygons of length $n$ (Even), with each initial direction counted separately, is the Product of the Coefficient of $x^{n^2/8}$ in
\begin{displaymath}
(1+x)(1+x^3)\cdots (1+x^{n-1}),
\end{displaymath} (3)

with the Coefficient of $x^{n(n/2+1)/8}$ in
\begin{displaymath}
(1+x)(1+x^2)\cdots (1+x^{n/2}).
\end{displaymath} (4)

The number of golygons $N(n)$ of length $8n$ for the first few $n$ are 4, 112, 8432, 909288, ... (Sloane's A006718) and is asymptotic to
\begin{displaymath}
N(n)\sim {3\cdot 2^{8n-4}\over \pi n^2(4n+1)}
\end{displaymath} (5)

(Sallows et al. 1991, Vardi 1991).

See also Lattice Path


References

Dudeney, A. K. ``An Odd Journey Along Even Roads Leads to Home in Golygon City.'' Sci. Amer. 263, 118-121, July 1990.

Sallows, L. C. F. ``New Pathways in Serial Isogons.'' Math. Intell. 14, 55-67, 1992.

Sallows, L.; Gardner, M.; Guy, R. K.; and Knuth, D. ``Serial Isogons of 90 Degrees.'' Math Mag. 64, 315-324, 1991.

Sloane, N. J. A. Sequence A006718/M3707 in ``An On-Line Version of the Encyclopedia of Integer Sequences.'' http://www.research.att.com/~njas/sequences/eisonline.html and Sloane, N. J. A. and Plouffe, S. The Encyclopedia of Integer Sequences. San Diego: Academic Press, 1995.

Vardi, I. ``American Science.'' §5.3 in Computational Recreations in Mathematica. Redwood City, CA: Addison-Wesley, pp. 90-96, 1991.
