Lissajous Curve

\begin{figure}\begin{center}\BoxedEPSF{lissajous_curves.epsf scaled 850}\end{center}\end{figure}

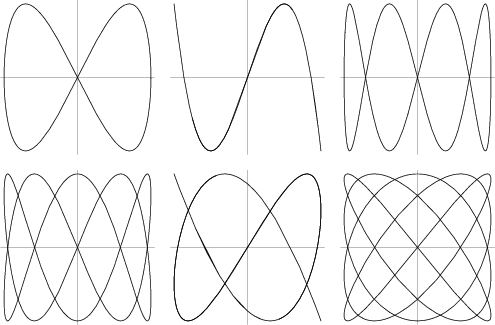

Lissajous curves are the family of curves described by the parametric equations

$\displaystyle x(t)$ $\textstyle =$ $\displaystyle A\cos(\omega_x t-\delta_x)$ (1)
$\displaystyle y(t)$ $\textstyle =$ $\displaystyle B\cos(\omega_y t-\delta_y),$ (2)

sometimes also written in the form
$\displaystyle x(t)$ $\textstyle =$ $\displaystyle a\sin(nt+c)$ (3)
$\displaystyle y(t)$ $\textstyle =$ $\displaystyle b\sin t.$ (4)

They are sometimes known as Bowditch Curves after Nathaniel Bowditch, who studied them in 1815. They were studied in more detail (independently) by Jules-Antoine Lissajous in 1857 (MacTutor Archive). Lissajous curves have applications in physics, astronomy, and other sciences. The curves close Iff $\omega_x/\omega_y$ is Rational.


References

Gray, A. Modern Differential Geometry of Curves and Surfaces. Boca Raton, FL: CRC Press, pp. 53-54, 1993.

Lawrence, J. D. A Catalog of Special Plane Curves. New York: Dover, pp. 178-179 and 181-183, 1972.

MacTutor History of Mathematics Archive. ``Lissajous Curves.'' http://www-groups.dcs.st-and.ac.uk/~history/Curves/Lissajous.html.
