Boy Surface

A Nonorientable Surface which is one of the three possible Surfaces obtained by sewing a Möbius Strip to the edge of a Disk. The other two are the Cross-Cap and Roman Surface. The Boy surface is a model of the Projective Plane without singularities and is a Sextic Surface.

The Boy surface can be described using the general method for Nonorientable Surfaces, but this was not known until the analytic equations were found by Apéry (1986). Based on the fact that it had been proven impossible to describe the surface using quadratic polynomials, Hopf had conjectured that quartic polynomials were also insufficient (Pinkall 1986). Apéry's Immersion proved this conjecture wrong, giving the equations explicitly in terms of the standard form for a Nonorientable Surface,

$\displaystyle f_1(x,y,z)$ $\textstyle =$ $\displaystyle {\textstyle{1\over 2}}[(2x^2-y^2-z^2)(x^2+y^2+z^2)+2yz(y^2-z^2)+zx(x^2-z^2)$
  $\textstyle \phantom{=}$ $\displaystyle +xy(y^2-x^2)]$ (1)
$\displaystyle f_2(x,y,z)$ $\textstyle =$ $\displaystyle {\textstyle{1\over 2}}\sqrt{3}[(y^2-z^2)(x^2+y^2+z^2)+zx(z^2-x^2)+xy(y^2-x^2)]$ (2)
$\displaystyle f_3(x,y,z)$ $\textstyle =$ $\displaystyle {\textstyle{1\over 8}}(x+y+z)[(x+y+z)^3+4(y-x)(z-y)(x-z)].$ (3)

\begin{figure}\begin{center}\BoxedEPSF{BoySurface.epsf scaled 1300}\end{center}\end{figure}

Plugging in

$\displaystyle x$ $\textstyle =$ $\displaystyle \cos u\sin v$ (4)
$\displaystyle y$ $\textstyle =$ $\displaystyle \sin u\sin v$ (5)
$\displaystyle z$ $\textstyle =$ $\displaystyle \cos v$ (6)

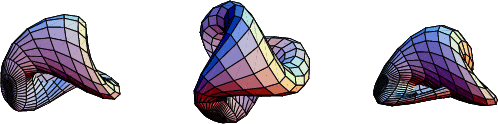

and letting $u\in [0,\pi]$ and $v\in [0,\pi]$ then gives the Boy surface, three views of which are shown above.

The $\Bbb{R}^3$ parameterization can also be written as

$\displaystyle x$ $\textstyle =$ $\displaystyle {\sqrt{2}\cos^2 v\cos(2u)+\cos u\sin(2v)\over 2-\sqrt{2}\sin(3u)\sin(2v)}$ (7)
$\displaystyle y$ $\textstyle =$ $\displaystyle {\sqrt{2}\cos^2 v\sin(2u)+\cos u\sin(2v)\over 2-\sqrt{2}\sin(3u)\sin(2v)}$ (8)
$\displaystyle z$ $\textstyle =$ $\displaystyle {3\cos^2 v\over 2-\sqrt{2}\sin(3u)\sin(2v)}$ (9)

(Nordstrand) for $u\in[-\pi/2,\pi/2]$ and $v\in [0,\pi]$.

\begin{figure}\begin{center}\BoxedEPSF{BoySurface2.epsf scaled 1200}\end{center}\end{figure}

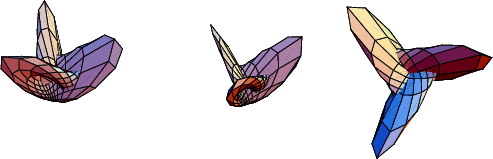

Three views of the surface obtained using this parameterization are shown above.

In fact, a Homotopy (smooth deformation) between the Roman Surface and Boy surface is given by the equations

$\displaystyle x(u,v)$ $\textstyle =$ $\displaystyle {\sqrt{2}\cos(2u)\cos^2v+\cos u\sin(2v)\over 2-\alpha\sqrt{2}\sin(3u)\sin(2v)}$ (10)
$\displaystyle y(u,v)$ $\textstyle =$ $\displaystyle {\sqrt{2}\sin(2u)\cos^2v-\sin u\sin(2v)\over 2-\alpha\sqrt{2}\sin(3u)\sin(2v)}$ (11)
$\displaystyle z(u,v)$ $\textstyle =$ $\displaystyle {3\cos^2v\over 2-\alpha\sqrt{2}\sin(3u)\sin(2v)}$ (12)

as $\alpha$ varies from 0 to 1, where $\alpha=0$ corresponds to the Roman Surface and $\alpha=1$ to the Boy surface (Wang), shown below.

In $\Bbb{R}^4$, the parametric representation is

$\displaystyle x_0$ $\textstyle =$ $\displaystyle 3[(u^2+v^2+w^2)(u^2+v^2)-\sqrt{2}\,vw(3u^2-v^2)]$
$\displaystyle x_1$ $\textstyle =$ $\displaystyle \sqrt{2}\,(u^2+v^2)(u^2-v^2+\sqrt{2}\,uw)$ (14)
$\displaystyle x_2$ $\textstyle =$ $\displaystyle \sqrt{2}\,(u^2+v^2)(2uv-\sqrt{2}\,vw)$ (15)
$\displaystyle x_3$ $\textstyle =$ $\displaystyle 3(u^2+v^2)^2,$ (16)

and the algebraic equation is

$64({x_0}-{x_3})^3 {x_3}^3-48({x_0}-{x_3})^2 {x_3}^2(3 {x_1}^2+3 {x_2}^2+2 {x_3}^2)$
$\quad +12({x_0}-{x_3}){x_3} [27({x_1}^2+{x_2}^2)^2-24 {x_3}^2({x_1}^2+{x_2}^2)$
$\qquad +36 \sqrt{2} {x_2} {x_3}({x_2}^2-3 {x_1}^2)+{x_3}^4]$
$\quad +(9 {x_1}^2+9 {x_2}^2-2 {x_3}^2)[-81({x_1}^2+{x_2}^2)^2-72 {x_3}^2({x_1}^2+{x_2}^2)$
$\qquad +108 \sqrt{2} {x_1} {x_3}({x_1}^2-3 {x_2}^2)+4 {x_3}^4]=0$ (17)
(Apéry 1986). Letting

$\displaystyle x_0$ $\textstyle =$ $\displaystyle 1$ (18)
$\displaystyle x_1$ $\textstyle =$ $\displaystyle x$ (19)
$\displaystyle x_2$ $\textstyle =$ $\displaystyle y$ (20)
$\displaystyle x_3$ $\textstyle =$ $\displaystyle z$ (21)

gives another version of the surface in $\Bbb{R}^3$.

See also Cross-Cap, Immersion, Möbius Strip, Nonorientable Surface, Real Projective Plane, Roman Surface, Sextic Surface


Apéry, F. ``The Boy Surface.'' Adv. Math. 61, 185-266, 1986.

Boy, W. ``Über die Curvatura integra und die Topologie geschlossener Flächen.'' Math. Ann 57, 151-184, 1903.

Brehm, U. ``How to Build Minimal Polyhedral Models of the Boy Surface.'' Math. Intell. 12, 51-56, 1990.

Carter, J. S. ``On Generalizing Boy Surface--Constructing a Generator of the 3rd Stable Stem.'' Trans. Amer. Math. Soc. 298, 103-122, 1986.

Fischer, G. (Ed.). Plates 115-120 in Mathematische Modelle/Mathematical Models, Bildband/Photograph Volume. Braunschweig, Germany: Vieweg, pp. 110-115, 1986.

Geometry Center. ``Boy's Surface.''

Hilbert, D. and Cohn-Vossen, S. §46-47 in Geometry and the Imagination. New York: Chelsea, 1952.

Nordstrand, T. ``Boy's Surface.''

Petit, J.-P. and Souriau, J. ``Une représentation analytique de la surface de Boy.'' C. R. Acad. Sci. Paris Sér. 1 Math 293, 269-272, 1981.

Pinkall, U. Mathematical Models from the Collections of Universities and Museums (Ed. G. Fischer). Braunschweig, Germany: Vieweg, pp. 64-65, 1986.

Stewart, I. Game, Set and Math. New York: Viking Penguin, 1991.

Wang, P. ``Renderings.''
