Varignon Parallelogram

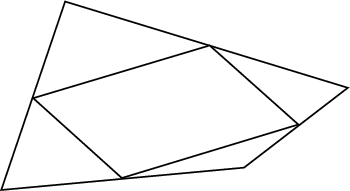

\begin{figure}\begin{center}\BoxedEPSF{Varignons_Parallelogram.epsf}\end{center}\end{figure}

The figure formed when the Midpoints of the sides of a convex Quadrilateral are joined. Varignon's Theorem demonstrated that this figure is a Parallelogram. The center of the Varignon parallelogram is the Centroid if four point masses are placed on the Vertices of the Quadrilateral.

See also Midpoint, Parallelogram, Quadrilateral, Varignon's Theorem
