4. Quadratic hypersurfaces in 4D

Content

  1. plane curve in 2D
  2. space curve in 3D
  3. surface in 3D
  4. surface in 4D

the 4-dimensional object (x,y,z,t) in 3D space

Have you ever tried to see objects in dimension 4? This is possible! Our space is in 3 dimensions. Adding the dimension of time, we get a space-time of dimension 4. The objects in this space-time are therefore 3D objects which deform with the time. following this principle, this tool proposes to you the visualization of some of these objects as deforming 3D objects, with the aim of helping you to establish this vision in dimension 4.

  • Input your equation, click the implicit3D button, or Input implicit3D(x*y*z-t=0), hit the ENTER key in your keybroad, manually change the t value by a slider.

    A quadratic hypersurface is the set of points verifying an algebraic equation of degree 2.

    This application proposes for you to visualize the following list of quadratic hypersurfaces in the space-time of dimension 4. In the equations, x,y,z are the coordinates of the space, and we use the variable t to designate the coordinate time. A same hypersurface is often presented several times, under different viewing angles (in particular with respect to t). Click the blue equation to load, manually change the t value by a slider in following table.

    .gifNo. #equationdescription
    1x2+y2+z2+t2=1hypersphere S4
    2x2+y2+z2-t2=1spherical cone with principal axis on the axis of t
    3x2+y2-z2+t2=0spherical cone with principal axis on the axis of z
    4x2-y2+z2+t2=0spherical cone with principal axis on the axis of y

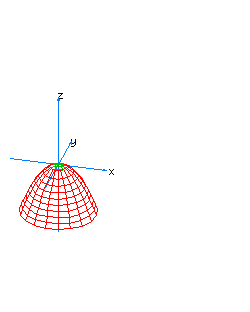

    5x2+y2-z*t=0spherical cone whose principal axis is the line x=y=z+t=0

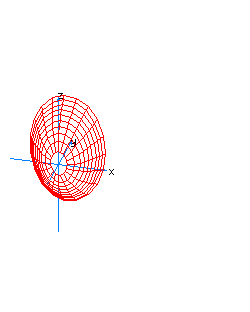

    6x2+z2-y*t=0spherical cone whose principal axis is the line x=z=y+t=0

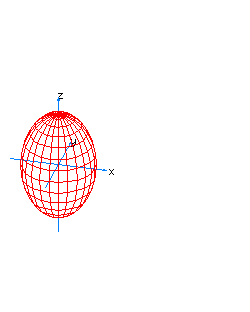

    7x2+y2+z2-t2=1spherical hyperboloid whose principal axis is the axis of t

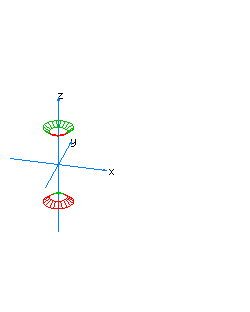

    8x2+y2-z2+t2=1spherical hyperboloid whose principal axis is the axis of z

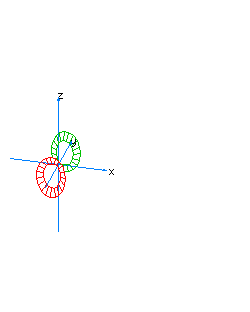

    9x2-y2+z2+t2=1spherical hyperboloid whose principal axis is the axis of y

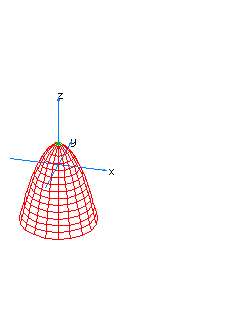

    10x2+y2-z*t=1spherical hyperboloid whose principal axis is the line x=y=z+t=0

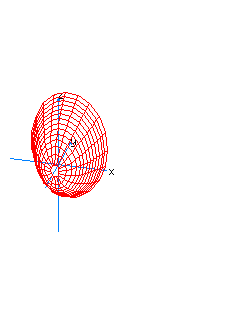

    11x2+z2-y*t=1spherical hyperboloid whose principal axis is the line x=z=y+t=0

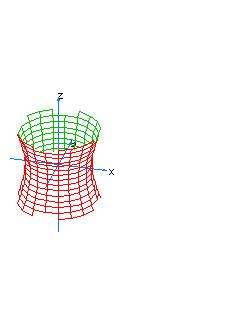

    12x2+y2-z2-t2=0vertical hyperboloidal cone

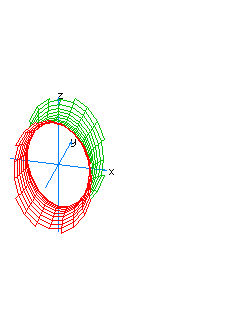

    13x2-y2+z2-t2=0horizontal hyperboloidal cone

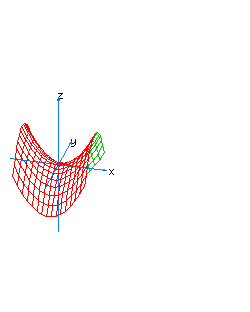

    14x2-y2-z*t=0hyperboloidal cone

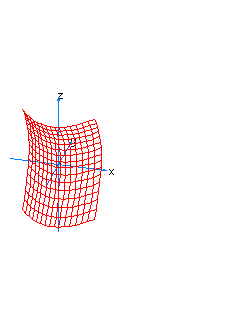

    15x2-z2-y*t=0hyperboloidal cone

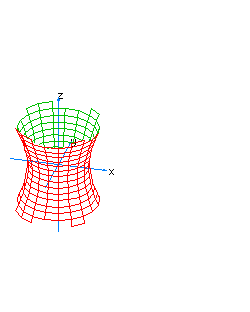

    16x2+y2-z2-t2=1hyperboloidal hyperboloid

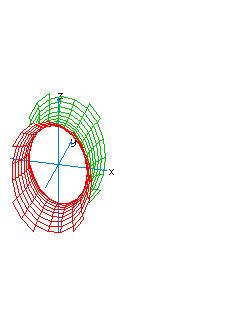

    17x2-y2+z2-t2=1hyperboloidal hyperboloid

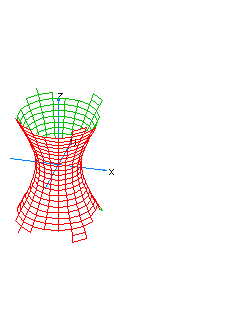

    18x2+y2-z2-t2= -1hyperboloidal hyperboloid

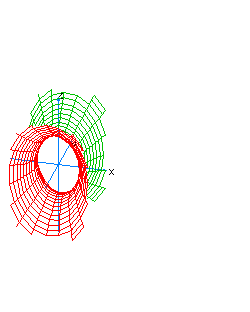

    19x2-y2+z2-t2= -1hyperboloidal hyperboloid

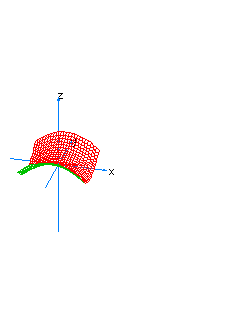

    20x2-y2-z*t=1hyperboloidal hyperboloid

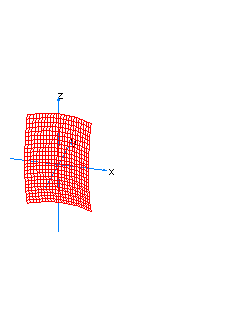

    21x2-z2-y*t=1hyperboloidal hyperboloid
    22x2+y2+z2-t=0spherical paraboloid oriented towards the axis of t
    23x2+y2-z+t2=0spherical paraboloid oriented towards the axis of z
    24x2-y+z2+t2=0spherical paraboloid oriented towards the axis of y
    25x2+y2-z2-t=0hyperboloidal paraboloid oriented towards the axis of t, vertical
    26x2-y2+z2-t=0hyperboloidal paraboloid oriented towards the axis of t, horizontal

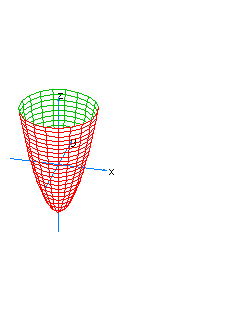

    27x2+y2-z-t2=0hyperboloidal paraboloid oriented towards the axis of z

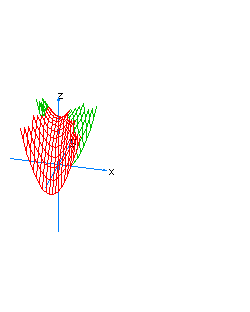

    28x2-y2-z+t2=0hyperboloidal paraboloid oriented towards the axis of z

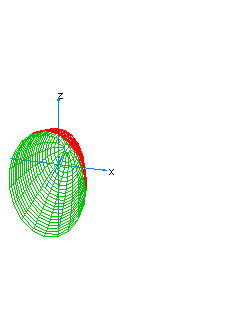

    29x2-y+z2-t2=0hyperboloidal paraboloid oriented towards the axis of y

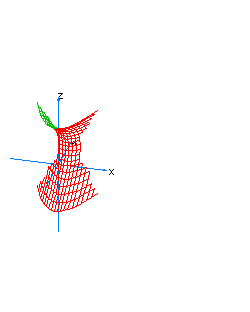

    30x2-y-z2+t2=0hyperboloidal paraboloid oriented towards the axis of y
    31x2+y2+t2=1vertical spherical cylinder
    32x2+z2+t2=1horizontal spherical cylinder

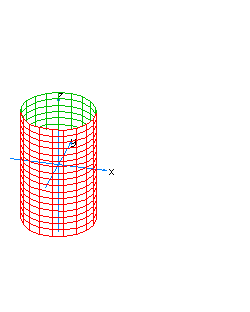

    33x2+y2-t2=0conic cylinder with a singular line on the axis of z

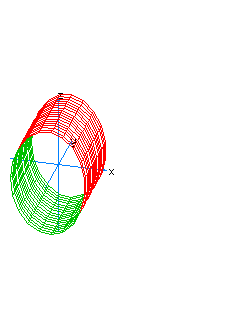

    34x2+z2-t2=0conic cylinder with a singular line on the axis of y

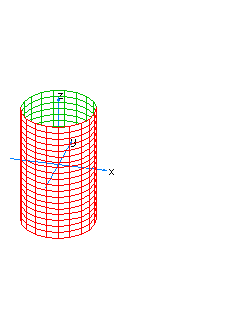

    35x2+y2-t2=1hyperboloidal cylinder with one sheet, vertical

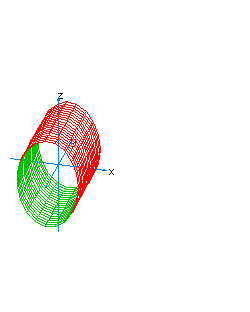

    36x2+z2-t2=1hyperboloidal cylinder with one sheet, horizontal

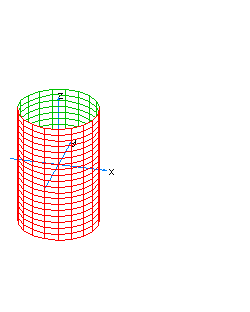

    37x2+y2-t2= 1hyperboloidal cylinder with two sheets, vertical

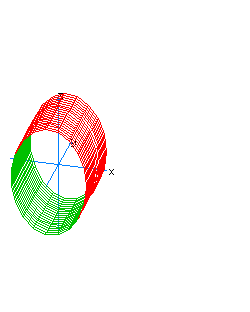

    38y2+z2-t2= 1hyperboloidal cylinder with two sheets, horizontal
    ? 39x*y*z-t=0 Dr hypersurface
    ? 40 z1.im*cos(a) + z2.im*sin(a) Fermat hypersurface
