Triangle

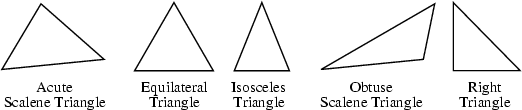

A triangle is a 3-sided Polygon sometimes (but not very commonly) called the Trigon. All triangles are convex. An Acute Triangle is a triangle whose three angles are all Acute. A triangle with all sides equal is called Equilateral. A triangle with two sides equal is called Isosceles. A triangle having an Obtuse Angle is called an Obtuse Triangle. A triangle with a Right Angle is called Right. A triangle with all sides a different length is called Scalene.

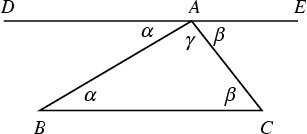

The sum of Angles in a triangle is 180°. This can be established as follows. Let $DAE\vert\vert BC$ ($DAE$ be Parallel to $BC$) in the above diagram, then the angles $\alpha$ and $\beta$ satisfy $\alpha=\angle DAB=\angle ABC$ and $\beta=\angle EAC=\angle ACB$, as indicated. Adding $\gamma$, it follows that

$$\alpha+\beta+\gamma=180^\circ,$$ (1)

since the sum of angles for the line segment must equal two Right Angles. Therefore, the sum of angles in the triangle is also 180°.

Let $S$ stand for a triangle side and $A$ for an angle, and let a set of $S$s and $A$s be concatenated such that adjacent letters correspond to adjacent sides and angles in a triangle. Triangles are uniquely determined by specifying three sides (SSS Theorem), two angles and a side (AAS Theorem), or two sides with an adjacent angle (SAS Theorem). In each of these cases, the unknown three quantities (there are three sides and three angles total) can be uniquely determined. Other combinations of sides and angles do not uniquely determine a triangle: three angles specify a triangle only modulo a scale size (AAA Theorem), and one angle and two sides not containing it may specify one, two, or no triangles (ASS Theorem).

The Straightedge and Compass construction of the triangle can be accomplished as follows. In the above figure, take $OP_0$ as a Radius and draw $OB\perp OP_0$. Then bisect $OB$ and construct $P_2P_1\vert\vert OP_0$. Extending $BO$ to locate $P_3$ then gives the Equilateral Triangle $\Delta P_1P_2P_3$.

In Proposition IV.4 of the Elements, Euclid showed how to inscribe a Circle (the Incircle) in a given triangle by locating the Center as the point of intersection of Angle Bisectors. In Proposition IV.5, he showed how to circumscribe a Circle (the Circumcircle) about a given triangle by locating the Center as the point of intersection of the perpendicular bisectors.

If the coordinates of the triangle Vertices are given by $(x_i,y_i)$ where $i=1,$ 2, 3, then the Area $\Delta$ is given by the Determinant

$$\Delta={1\over 2!}\left\vert\matrix{x_1 & y_1 & 1\cr x_2 & y_2 & 1\cr x_3 & y_3 & 1\cr}\right\vert.$$ (2)

If the coordinates of the triangle Vertices are given in 3-D by $(x_i,y_i,z_i)$ where $i=1$, 2, 3, then

$$\Delta= {1\over 2}\sqrt{\left\vert\matrix{y_1 & z_1 & 1\cr y... ...& y_1 & 1\cr x_2 & y_2 & 1\cr x_3 & y_3 & 1\cr}\right\vert^2}.$$ (3)

In the above figure, let the Circumcircle passing through a triangle's Vertices have Radius $r$, and denote the Central Angles from the first point to the second $\theta_1$, and to the third point by $\theta_2$. Then the Area of the triangle is given by

$$\Delta=2r^2\left\vert{\sin({\textstyle{1\over 2}}\theta_1)\s... ...2)\sin[{\textstyle{1\over 2}}(\theta_1-\theta_2)]}\right\vert.$$ (4)

If a triangle has sides $a$, $b$, $c$, call the angles opposite these sides $A$, $B$, and $C$, respectively. Also define the Semiperimeter $s$ as Half the Perimeter:

$$s\equiv {\textstyle{1\over 2}}p={\textstyle{1\over 2}}(a+b+c).$$ (5)

The Area of a triangle is then given by Heron's Formula

$$\Delta=\sqrt{s(s-a)(s-b)(s-c)},$$ (6)

as well by the Formulas

$$\Delta = {\textstyle{1\over 4}}\sqrt{(a+b+c)(b+c-a)(c+a-b)(a+b-c)}$$ (7)

$$= {\textstyle{1\over 4}}\sqrt{2(a^2b^2+a^2c^2+b^2c^2)-(a^4+b^4+c^4)}$$ (8)

$$= {\textstyle{1\over 4}}\sqrt{[(a+b)^2-c^2][c^2-(a-b)^2]}$$ (9)

$$= {\textstyle{1\over 4}}\sqrt{p(p-2a)(p-2b)(p-2c)},$$ (10)

$$= 2R^2\sin A\sin B\sin C$$ (11)

$$= {abc\over 4R} = rs$$ (12)

$$= {\textstyle{1\over 2}}a h_a$$ (13)

$$= {\textstyle{1\over 2}}bc\sin A.$$ (14)

In the above formulas, $h_i$ is the Altitude on side $i$, $R$ is the Circumradius, and $r$ is the Inradius (Johnson 1929, p. 11). Expressing the side lengths $a$, $b$, and $c$ in terms of the radii $a'$, $b'$, and $c'$ of the mutually tangent circles centered on the Triangle vertices (which define the Soddy Circles),

$$a = b'+c'$$ (15)

$$b = a'+c'$$ (16)

$$c = a'+b',$$ (17)

gives the particularly pretty form

$$\Delta=\sqrt{a'b'c'(a'+b'+c')}\,.$$ (18)

For additional Formulas, see Beyer (1987) and Baker (1884), who gives 110 Formulas for the Area of a triangle.

The Angles of a triangle satisfy

$$\cot A ={b^2+c^2-a^2\over 4\Delta}$$ (19)

where $\Delta$ is the Area (Johnson 1929, p. 11, with missing squared symbol added). This gives the pretty identity

$$\cot A+\cot B+\cot C={a^2+b^2+c^2\over 4\Delta}.$$ (20)

Let a triangle have Angles $A$, $B$, and $C$. Then

$$\sin A\sin B\sin C\leq kABC,$$ (21)

where

$$k=\left({{3\sqrt{3}\over 2\pi}\,}\right)^3$$ (22)

(Abi-Khuzam 1974, Le Lionnais 1983). This can be used to prove that

$$8\omega^3<ABC,$$ (23)

where $\omega$ is the Brocard Angle.

Trigonometric Functions of half angles can be expressed in terms of the triangle sides:

$$\cos({\textstyle{1\over 2}}A) = \sqrt{s(s-a)\over bc}$$ (24)

$$\sin({\textstyle{1\over 2}}A) = \sqrt{(s-b)(s-c)\over bc}$$ (25)

$$\tan({\textstyle{1\over 2}}A) = \sqrt{(s-b)(s-c)\over s(s-a)}\,,$$ (26)

where $s$ is the Semiperimeter.

The number of different triangles which have Integral sides and Perimeter $n$ is

$$T(n) = P_3(n)-\sum_{1\leq j\leq\left\lfloor{n/2}\right\rfloor } P_2(j)$$

$$= \left[{n^2\over 12}\right]-\left\lfloor{n\over 4}\right\rfloor \left\lfloor{n+2\over 4}\right\rfloor$$

$$= \left\{\begin{array}{ll} \left[{n^2\over 48}\right]& \mbox{for $n$\ even}\\ \left[{(n+3)^2\over 48}\right]& \mbox{for $n$\ odd,}\end{array}\right.$$ (27)

where $P_2$ and $P_3$ are Partition Function P, $[x]$ is the Nint function, and $\left\lfloor{x}\right\rfloor$ is the Floor Function (Jordan et al. 1979, Andrews 1979, Honsberger 1985). The values of $T(n)$ for $n=1$, 2, ... are 0, 0, 1, 0, 1, 1, 2, 1, 3, 2, 4, 3, 5, 4, 7, 5, 8, 7, 10, 8, 12, 10, 14, 12, 16, ... (Sloane's A005044), which is also Alcuin's Sequence padded with two initial 0s. $T(n)$ also satisfies

$$T(2n)=T(2n-3)=P_3(n).$$ (28)

It is not known if a triangle with Integer sides, Medians, and Area exists (although there are incorrect Proofs of the impossibility in the literature). However, R. L. Rathbun, A. Kemnitz, and R. H. Buchholz have shown that there are infinitely many triangles with Rational sides (Heronian Triangles) with two Rational Medians (Guy 1994).

In the following paragraph, assume the specified sides and angles are adjacent to each other. Specifying three Angles does not uniquely define a triangle, but any two triangles with the same Angles are similar (the AAA Theorem). Specifying two Angles $A$ and $B$ and a side $a$ uniquely determines a triangle with Area

$$\Delta = {a^2\sin B\sin C\over 2\sin A} = {a^2\sin B\sin(\pi-A-B)\over 2\sin A}$$ (29)

(the AAS Theorem). Specifying an Angle $A$, a side $c$, and an Angle $B$ uniquely specifies a triangle with Area

$$\Delta={c^2\over 2(\cot A+\cot B)}$$ (30)

(the ASA Theorem). Given a triangle with two sides, $a$ the smaller and $c$ the larger, and one known Angle $A$, Acute and opposite $a$, if $\sin A < a/c$, there are two possible triangles. If $\sin A = a/c$, there is one possible triangle. If $\sin A > a/c$, there are no possible triangles. This is the ASS Theorem. Let $a$ be the base length and $h$ be the height. Then

$$\Delta = {\textstyle{1\over 2}}ah = {\textstyle{1\over 2}}ac\sin B$$ (31)

(the SAS Theorem). Finally, if all three sides are specified, a unique triangle is determined with Area given by Heron's Formula or by

$$\Delta={abc\over 4R},$$ (32)

where $R$ is the Circumradius. This is the SSS Theorem.

There are four Circles which are tangent to the sides of a triangle, one internal and the rest external. Their centers are the points of intersection of the Angle Bisectors of the triangle.

Any triangle can be positioned such that its shadow under an orthogonal projection is Equilateral.
